Placeholder -58% OFF

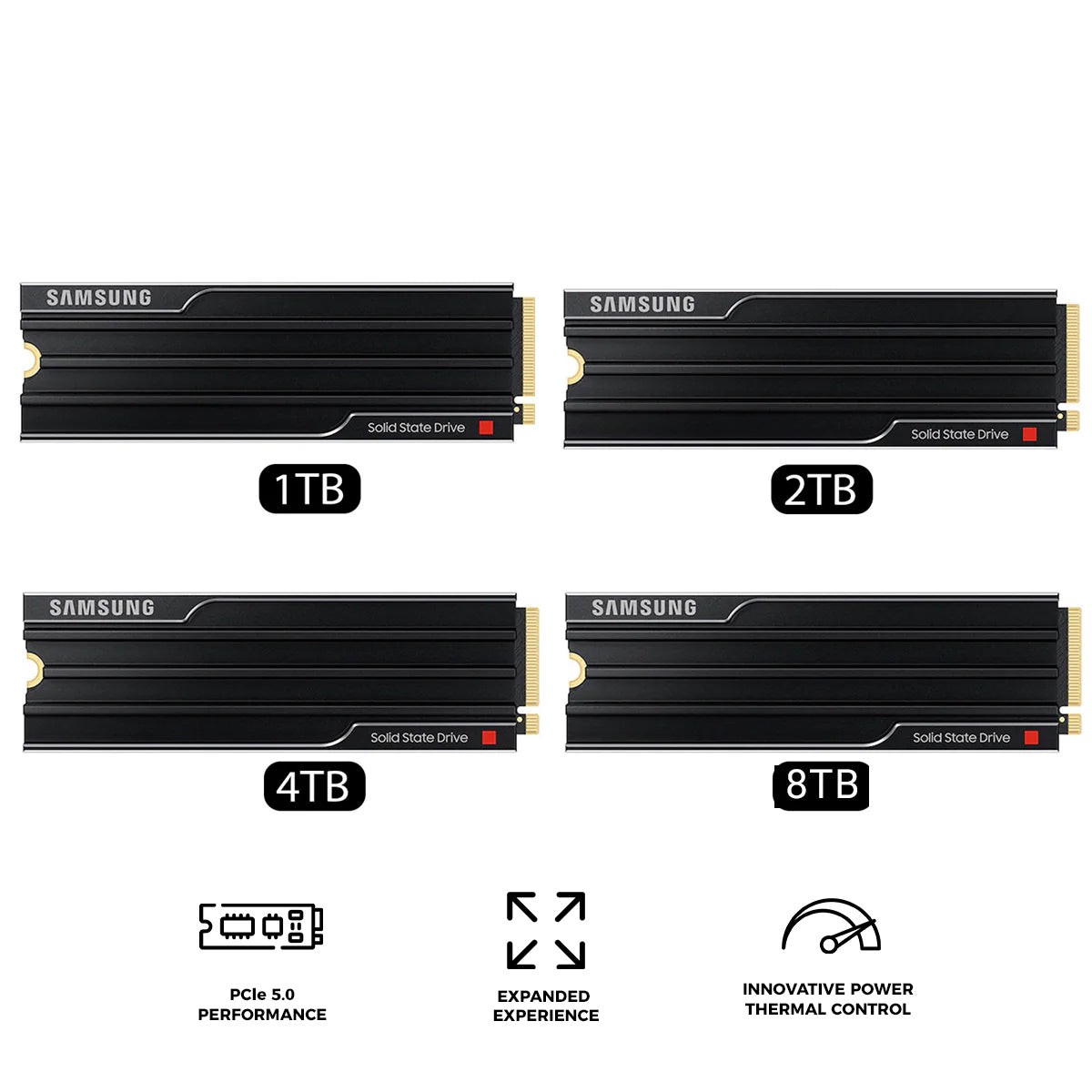

Samsung 9100 Pro PCIe 5.0 x4 NVMe M.2 SSD with Heatsink (1TB, 2TB, 4TB, 8TB)

Original price was: $341.99.Current price is: $145.00.
Category:

Performance ready for a new era

Blazing speed. Massive capacity. Built for AI and beyond. With up to twice the speed of the 990 PRO SSD and up to an 4TB storage option, the Samsung 9100 PRO with Heatsink SSD supercharges AI workloads, 4K video rendering, and gaming.

Specification:

Form Factor M.2
Capacity 1TB, 2TB, 4TB, 8TB
Sequential Read Speed Up to 14,800 MB/s
Sequential Write Speed Up to 13,400 MB/s
Model Code (Capacity) MZ-VAP1T0CW (1TB)
MZ-VAP2T0CW (2TB)
MZ-VAP4T0CW (4TB)
MZ-VAP8T0CW (8TB)
General Feature – Application Client PCs, PlayStation5
FORM FACTOR M.2 (2280)
INTERFACE PCIe 5.0 x4, NVMe 2.0
DIMENSION (WxHxD) 1TB/2TB/4TB : 80.15 x 25 x 8.88 mm
8TB : 80.15 x 25 x 11.25 mm
WEIGHT 1TB/2TB/4TB : Max 30.0g
8TB : Max 35.0g
STORAGE MEMORY Samsung V-NAND TLC
CONTROLLER Samsung in-house Controller
CACHE MEMORY 1TB: Samsung 1GB Low Power DDR4X SDRAM
2TB: Samsung 2GB Low Power DDR4X SDRAM
4TB: Samsung 4GB Low Power DDR4X SDRAM
8TB: Samsung 8GB Low Power DDR4X SDRAM
Special Feature – TRIM Support Supported
S.M.A.R.T Support Supported
GC (GARBAGE COLLECTION) Auto Garbage Collection Algorithm
ENCRYPTION SUPPORT AES 256-bit Encryption (Class 0) TCG/Opal
IEEE1667 (Encrypted drive)
WWN SUPPORT Not supported
DEVICE SLEEP MODE SUPPORT Yes
Performance – SEQUENTIAL READ 1TB: Up to 14,700 MB/s
2TB: Up to 14,700 MB/s
4TB: Up to 14,800 MB/s
8TB: Up to 14,800 MB/s
Performance – SEQUENTIAL WRITE 1TB: Up to 13,300 MB/s
2TB: Up to 13,400 MB/s
4TB: Up to 13,400 MB/s
8TB: Up to 13,400 MB/s
RANDOM READ (4KB, QD32) 1TB: Up to 1,850,000 IOPS
2TB: Up to 1,850,000 IOPS
4TB: Up to 2,200,000 IOPS
8TB: Up to 2,200,000 IOPS
RANDOM WRITE (4KB, QD32) 1TB: Up to 2,600,000 IOPS
2TB: Up to 2,600,000 IOPS
4TB: Up to 2,600,000 IOPS
8TB: Up to 2,600,000 IOPS
Environment – AVERAGE POWER CONSUMPTION (System Level) 1TB: Average 7.6 W (Maximum 7.2 W burst mode)
2TB: Average 8.1 W (Maximum 7.9 W burst mode)
4TB: Average 9 W (Maximum 8.2 W burst mode)
8TB: Average 10.5 W (Maximum 8.8 W burst mode)
POWER CONSUMPTION (IDLE) 1TB: Max. 4 mW
2TB: Max. 4.8 mW
4TB: Max. 6.5 mW
8TB: Max. 9.3 mW
POWER CONSUMPTION (DEVICE SLEEP) 1TB: Max. 3.3 mW
2TB: Max. 4 mW
4TB: Max. 5.7 mW
8TB: Max. 8.6 mW
ALLOWABLE VOLTAGE 3.3 V 5 %
RELIABILITY (MTBF) 1.5 Million Hours
OPERATING TEMPERATURE 0 – 70 C
Shock 1,500 G & 0.5 ms (Half sine)
Accessories – INSTALLATION KIT Not Available
Software – MANAGEMENT SW Magician Software for SSD management
